High-Efficiency Automated Powder Coating Booth System

High-Efficiency Automated Powder Coating Booth System

Maximize your production throughput with CoatTech's Automated Powder Coating Booth. Featuring an integrated overhead conveyor and advanced powder recovery for continuous, high-volume industrial surface finishing.

Transform Your Surface Finishing with CoatTech Automation

Designed for continuous, high-volume production, the CoatTech Automated Powder Coating Booth represents the pinnacle of industrial surface finishing efficiency. Engineered to integrate seamlessly into a continuous coating line, this system delivers unparalleled consistency, reduces manual labor, and significantly cuts down on powder waste through advanced recovery technology.

Whether you are coating flat panels, complex extrusions, or heavy automotive parts, our automated booth ensures a flawless, uniform finish on every piece that passes through the line.

Key Features & Advantages

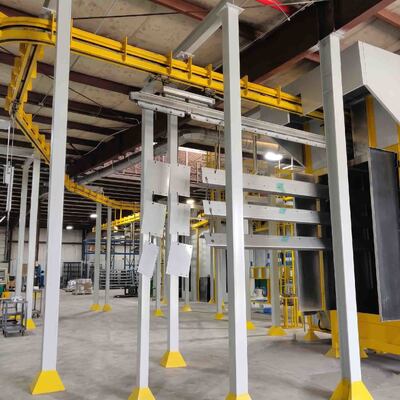

1.Continuous Overhead Conveyor Integration: Designed around a heavy-duty yellow overhead track system, allowing workpieces to move through the coating process at a consistent, adjustable speed without manual handling.

2.Automated Reciprocator Compatibility: The cabin features strategically designed vertical openings tailored for automated robotic spray arms (reciprocators), ensuring precise, even powder application across all workpiece dimensions.

3.High-Efficiency Powder Recovery: Equipped with an advanced powder management and recovery system (cyclone or cartridge filter options available) to capture overspray, filter it, and return it to the feed hopper, maximizing material utilization and minimizing operational costs.

4.Optimized Airflow Management: The booth interior is engineered for optimal downdraft or cross-draft airflow, containing the powder safely within the cabin and preventing contamination of the surrounding factory environment.

5.User-Friendly Control Interface: Integrated side-mounted control panels provide operators with precise command over conveyor speed, spray parameters, and recovery system diagnostics.

Ideal Industrial Applications

Our automated continuous powder coating lines are perfect for industries demanding high throughput and rigorous quality control:

Metal Furniture & Shelving Manufacturing

Automotive Components & Accessories

Architectural Aluminum Extrusions

Home Appliance Enclosures

Heavy Machinery & Agricultural Equipment

Technical Specifications

Frequently Asked Questions (FAQ)

1. Can this automated booth handle rapid color changes?
Yes. For operations requiring frequent color changes, we recommend configuring the booth with our advanced cyclone recovery system and engineering plastic cabin walls. This setup minimizes powder adherence to the booth interior, allowing for a complete color changeover in a fraction of the time compared to traditional systems.

2. How does the automated system ensure consistent coating thickness?
The system relies on synchronized automation. The speed of the overhead conveyor is directly coordinated with the stroke speed and powder output of the automated reciprocators. Once the optimal parameters are set on the PLC control panel, the system delivers the exact same powder volume to every part, eliminating the inconsistencies of manual spraying.

3. Is it possible to integrate this booth into my existing pre-treatment and curing line?
Absolutely. CoatTech systems are designed with modularity in mind. Our engineering team can customize the dimensions of the booth and the height/routing of the overhead conveyor to seamlessly bridge your existing pre-treatment washing stages and your curing ovens.

4. What kind of maintenance is required for the powder recovery system?
Routine maintenance involves checking and periodically replacing the filter cartridges, inspecting the powder feed pumps, and ensuring the cyclone (if equipped) is clear of debris. Our control system includes diagnostic alerts to notify operators when pressure drops indicate that filters need cleaning or replacement.

If you want to see the full video,please click here

https://youtube.com/shorts/wza3_h1HXk4

Need a Custom Solution for Your Plant?

Every manufacturing layout is unique. CoatTech specializes in designing and manufacturing turnkey intelligent finishing solutions

tailored to your exact facility dimensions and production targets.

Contact us today for layout drawings, technical proposals, and price calculations.
