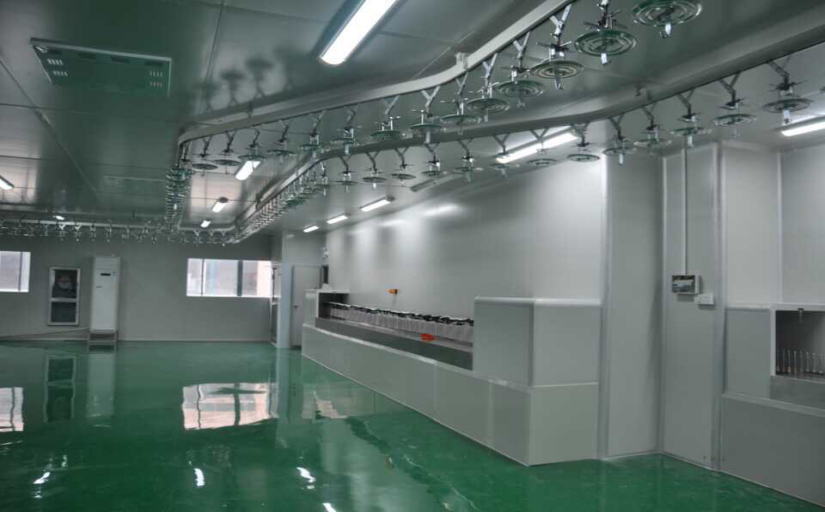

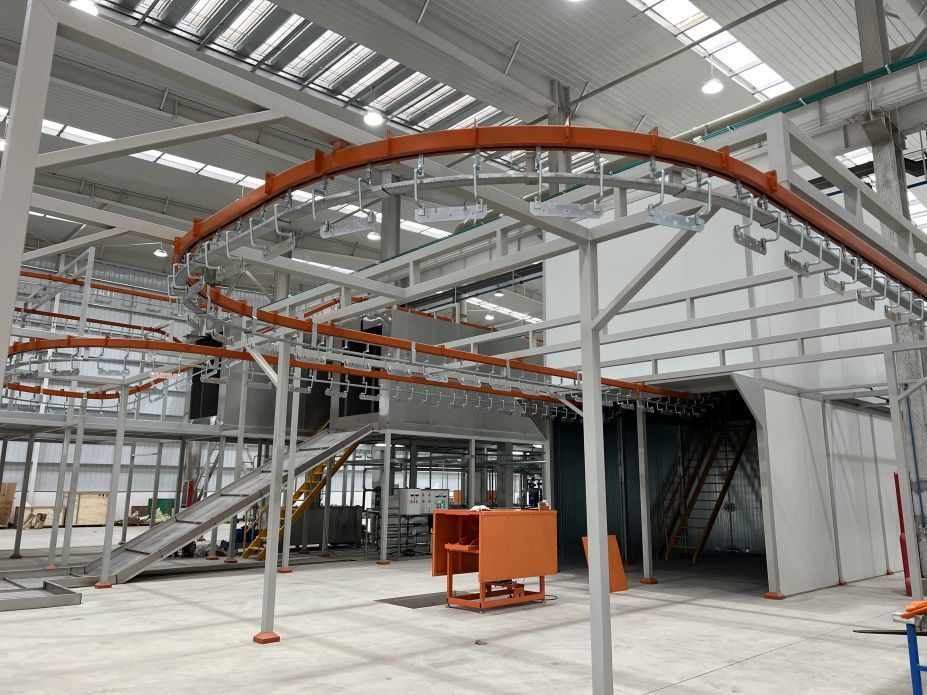

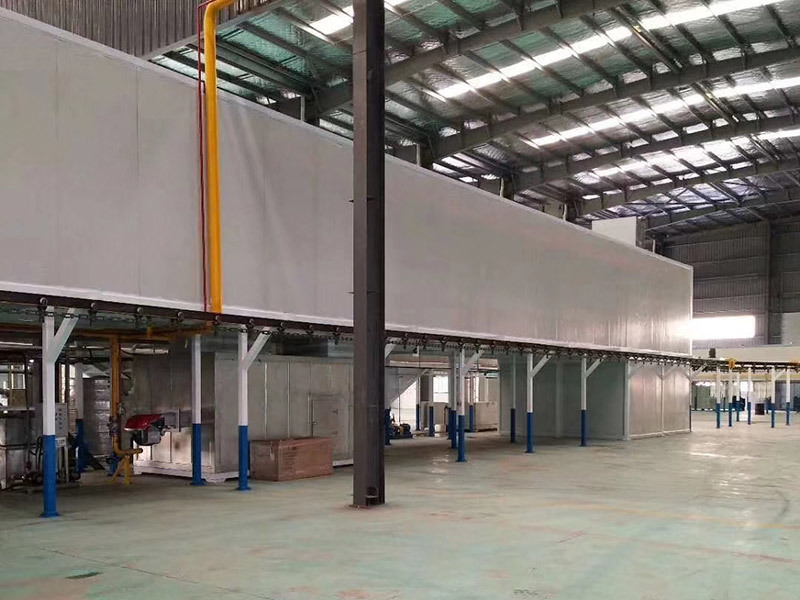

Heavy-Duty Floor Rail Coating Line‌

‌Engineered for precision surface treatment of large-scale industrial components

‌

‌Core System‌:

• ‌Unpowered Translation Vehicle‌: 8mm steel-plated I-beam chassis for ‌heavy-load stability‌
• ‌Ground Conveyor Chain‌: Manganese steel traction chain with ‌PLC-controlled speed adjustment‌

‌Process Excellence‌:

1. ‌Sanding‌ → 2. ‌Cleaning‌ → 3. ‌Drying‌ → 4. ‌Spray Painting‌ → 5. ‌Baking‌

• Modular rooms (polishing/cleaning/painting/baking) for ‌customized treatment‌

‌Technical Advantages‌:

• Cycloidal pinwheel reducer for ‌98% transmission efficiency‌
• Screw-type tensioning to ‌compensate thermal expansion‌
• 30kg/m light rail track with ‌embedded steel foundation‌

‌Applications‌: Automotive frames, construction machinery, and other ‌large-scale metal components‌ requiring durable coatings.

‌Note‌: Baking parameters and room dimensions configurable per project requirements.

Used for surface treatment of large, heavy workpieces with low productivity requirements;

Process flow:pieces on-->sanding-->cleaning-->drying-->spray painting-->baking paint-->pieces off;

The room structure includes: polishing room, cleaning room, drying room, spray painting room, and baking room

(customized according to the product);

Translation car: It is welded and formed by I-beam and channel steel, and the surface is paved with 8mm thick steel plate;

Ground conveyor chain equipment description:

It is mainly composed of driving device, traction chain, tensioning device and conveyor track.

⑴Driving device

The power of the driving device is transmitted to the driving spindle through the motor-reducer and the transmission chain.

Finally, the driving sprocket drives the conveyor chain, making the conveyor chain move forward along the conveyor chain track;

the use of a cycloidal pinwheel reducer can greatly improve the transmission efficiency. , and the movement is reliable.

⑵ Traction chain

The chain consists of pin shaft, chain plate, pusher chain plate and roller sleeve. The pusher spacing can be assembled into

various shapes according to needs.just to meet the needs of work rhythm.

This series of conveyor chains all use high-quality manganese steel as chain plates, and all require specified tensile tests

before leaving the factory.

⑶Tensioning device

This device ensures that the entire conveyor chain always maintains a relatively stable tension during operation.

At the same time, it can absorb or compensate for the installation error of the conveyor chain, the expansion and contraction caused

by thermal expansion, contraction and force deformation during operation. Ensure that the conveyor chain has an initial tension at the

winding-out point of the drive device and eliminate devices that generate negative tension in the entire line.This series of tensioning devices mainly uses screw rods for tensioning. Its structure is relatively simple and compact, and its tensioning force is relatively stable;

⑷Conveyor track

The trolley track adopts 30kg/m light rail (the foundation is pre-embedded in construction), the running wheels use light rail steel wheels,

and the trolley brackets are all welded from section steel, with a solid structure;The entire line adopts PLC control, stepless speed adjustment, and is equipped with multiple induction probes and control buttons.
